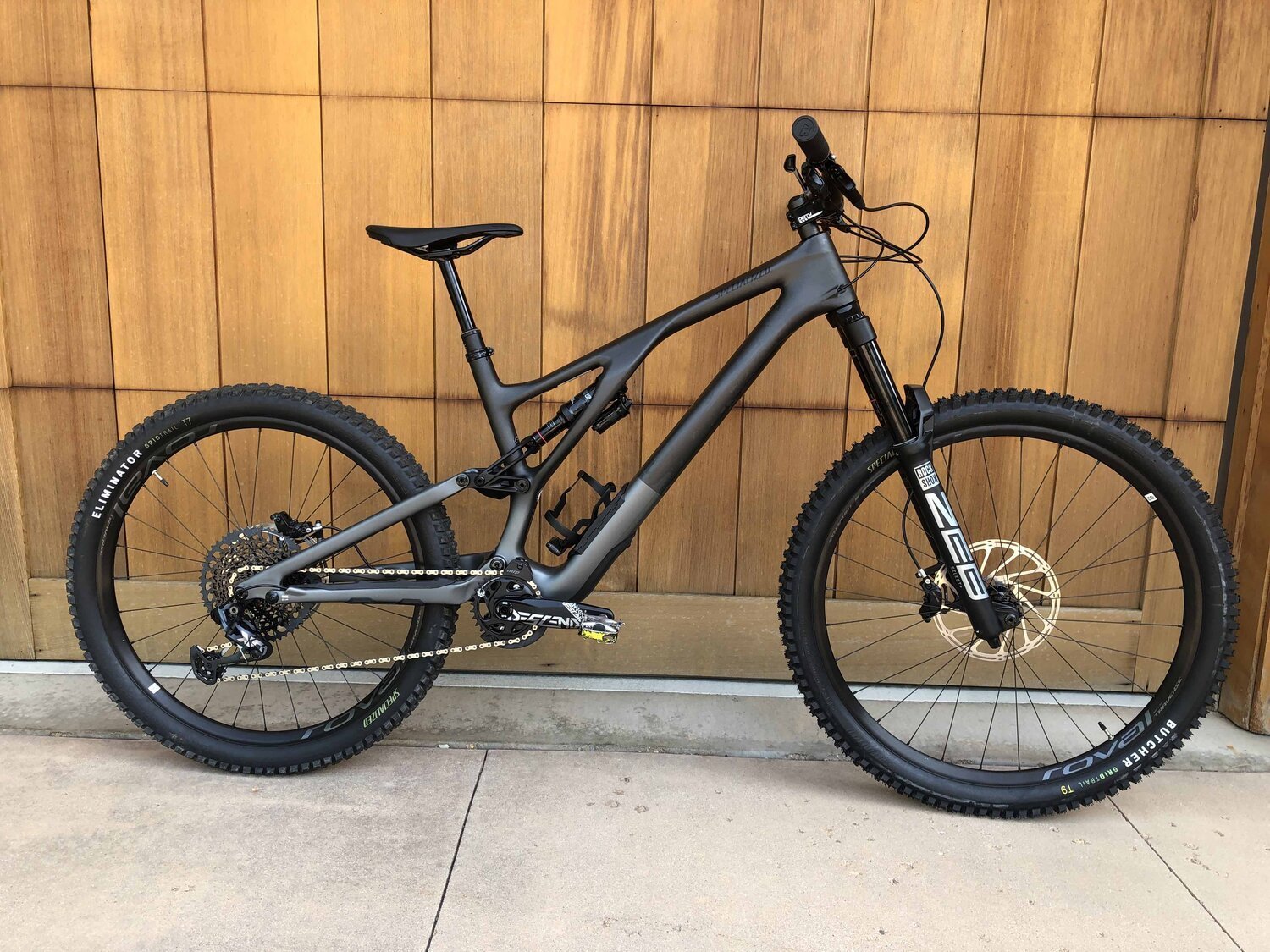

2021 Specialized Stumpjumper EVO LTD - XL
2021 Specialized Stumpjumper EVO LTD
29” Front, 27.5” Rear
Size S5 - XL
FRAMESET
SWAT Increased-volume SWAT™ Door integration with 22oz SWAT™ Bladder
Frame FACT 11m carbon chassis and rear-end, asymmetrical design, 29 / 27.5 Trail Mullet Geometry, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded
BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Seat Binder Alloy, 38.6
DRIVETRAIN
Chainrings Alloy, 30T
Rear Derailleur Sram X01 Eagle, 12-speed
Shift Levers SRAM X01, trigger, 12-speed
Bottom Bracket SRAM DUB, BSA 73mm, threaded
Cassette Sram XG-1275, 12-speed, 10-52t
Crankset SRAM Descendant 7K, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm
Chain SRAM GX Eagle, 12-speed
BRAKES
Front Brake SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
Rear BrakeS RAM Code RS, 4-piston caliper, hydraulic disc, 200mm
WHEELS
Rear Tire Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
Front Tire Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Spokes DT Swiss Competition Race
Front Hub Roval Traverse, sealed cartridge bearings, 15x110mm spacing, 28h
Inner Tubes Standard, Presta Valve
Rear Hub Roval Traverse, DT Swiss 370 internals, 3-pawl design, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Rims Roval Traverse 29 / 27.5, hookless alloy, 30mm inner width, tubeless ready
COCKPIT
Stem Deity Copperhead, 35.0mm
Seat Post OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)GripsDiety, Supracush, Black
Saddle Bridge, 155/143mm, Hollow Ti-rails
Handlebars Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
SUSPENSION
Rear Shock RockShox Super Deluxe Select Plus, external rebound adjust, open/threshold lever, S1: 210x50mm,S2-S6: 210x55mm
Fork RockShox Zeb Select Plus, DebonAir, Charger 2.1 RC damper with rebound adjust, and low-speed compression adjust, tapered steerer, 44mm offset, 15mm Maxle® Stealth thru-axle, 15x110mm Boost™, 160mm of travel
