2021 Trek Rail 9.7 - XL
2021 Trek Rail 9.7
Size Small, Small, XL and Large
Rail 9.7 is a long-travel carbon electric mountain bike that gets you to the fun stuff faster. It’s feels and rides just like our rowdiest trail bikes, and it's built with the same trail-specific tech. The difference is that the powerful new Bosch drive system zips up climbs so you can spend less time grinding and more time getting rad.
Specifications
*spec applies to all sizes unless otherwise noted
Frame
OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travelShockRockShox Deluxe Select+, 230mm x 57.5mm
Max Compatible Fork Travel170mm (580mm axle-to-crown)
Wheel Front
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axleWheel RearBontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru axleSkewer RearBontrager Switch thru axle, removable leverRimBontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axleTireBontrager XR5 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.60''Rim StripBontrager TLR
Max Tire SizeFrame: 29x2.60" Fork: See manufacturer

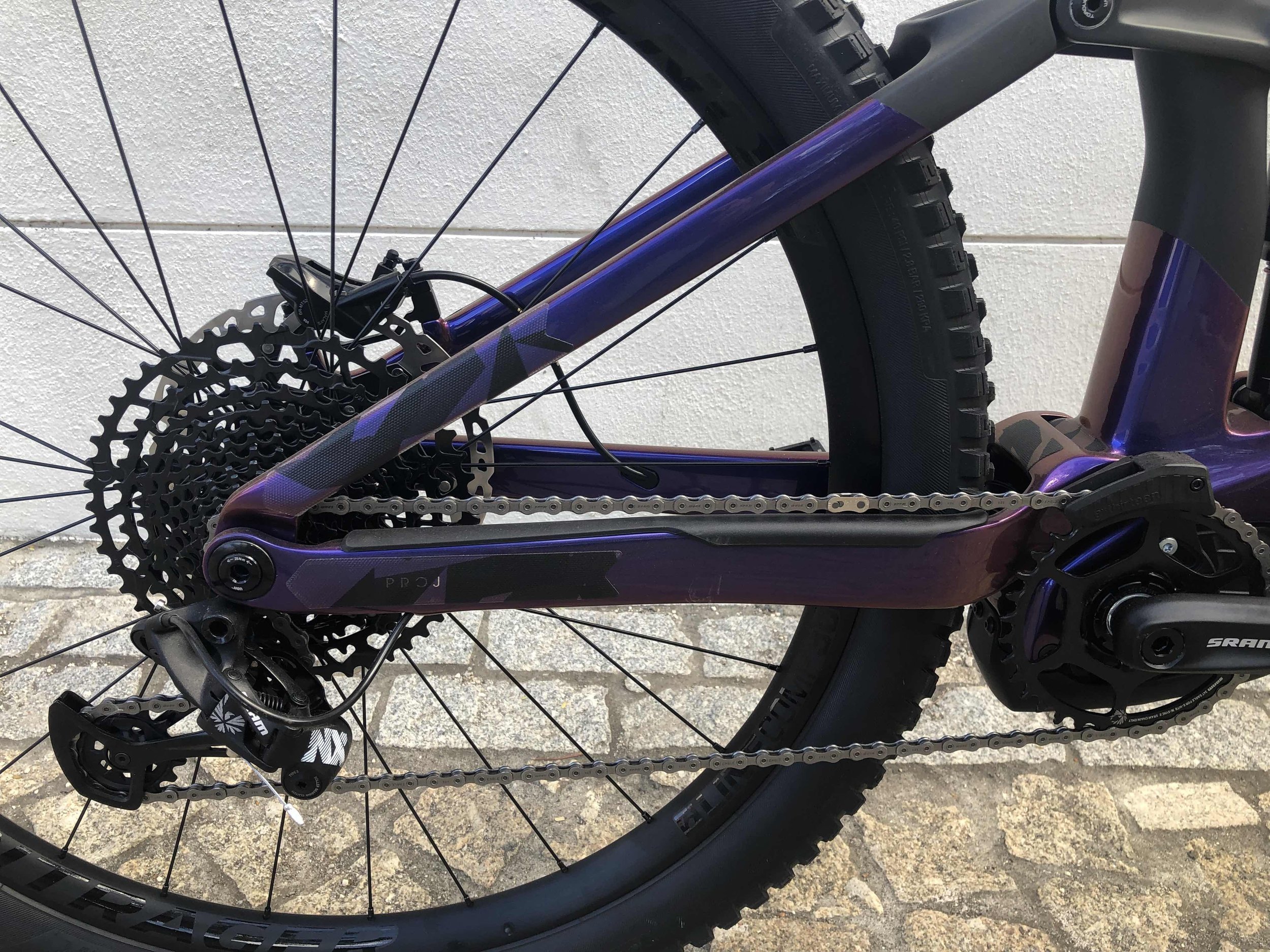

Shifter SRAM NX Eagle single-click, 12 speedRear Derailleur SRAM NX EagleCrankSRAM X1 1000, 34T, 165mm length Cassette SRAM PG-1230 Eagle, 11-50, 12 speed ChainSRAM NX Eagle, 12 speed PedalVP-536 nylon platform Max Chainring Size34T
SaddleBontrager Arvada, steel rails, 138mm width *SeatpostSize: S
Bontrager Line Dropper, 100mm travel, internal routing, 31.6mm, 345mm lengthSize: M, L, XL
Bontrager Line Dropper, 150mm travel, internal routing, 31.6mm, 440mm lengthHandlebarBontrager Comp, alloy, 31.8mm, 15mm rise, 780mm widthGripsBontrager XR Trail Comp, nylon lock-onStemBontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 60mm lengthHeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
Brake Rotor Shimano RT76, 6-bolt, 203mm
Battery Bosch PowerTube 625 Charger Bosch standard 4A (100-240V) chargerMotorBosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist
